The Hikvision DS-KIS604-S(C) The IP Video Intercom Kit is a complete smart intercom solution designed for villas and residential properties. It offers high-definition video communication, remote mobile access, and secure door control in a single package.

With a 1080P HD door station, 7-inch indoor touchscreen monitor, and PoE connectivity, this system ensures reliable performance and easy installation. The integration with the Hik-Connect app allows users to monitor, communicate, and unlock doors remotely from anywhere.

Key Features

• 1080P Full HD video intercom
• 7-inch color touchscreen indoor monitor
• One-touch call button for easy operation
• Mobile control via Hik-Connect app
• Supports TF card storage (up to 32GB)
• Built-in microphone & speaker with noise cancellation
• Supports 2 door lock controls
• Wide-angle lens (124° horizontal view)
• IP65 weatherproof & IK08 vandal-resistant
• PoE support for easy installation

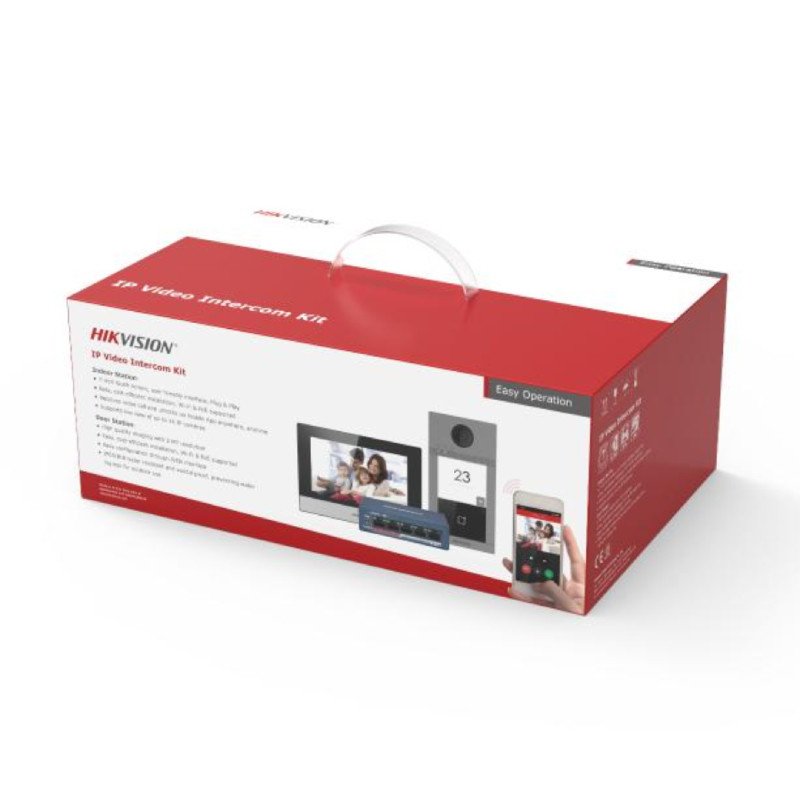

What’s Included in the Kit

• Outdoor Door Station: DS-KV8113-WME1(C) × 1
• Indoor Monitor: DS-KH6320-WTE × 1
• 4-Port Standard PoE Switch × 1
• Surface Mount Bracket × 1
• Administrator Card × 1
• Key Fobs × 5
• 32GB TF Card × 1
• Power Supply (PSU) × 1

Door Station Specifications

• Resolution: 1920 × 1080 (Full HD)
• Lens: Wide-angle (124° H / 75° V)
• Video Compression: H.264 / H.265 / MJPEG
• Audio: Built-in mic & speaker with echo cancellation
• Network: TCP/IP, RTSP, ONVIF
• WiFi: 2.4GHz supported
• Lock Control: Supports up to 2 doors
• Protection: IP65, IK08
• Power: PoE / 12V DC

Indoor Monitor Specifications

• Display: 7-inch TFT touchscreen
• Resolution: 1024 × 600
• Audio: Two-way communication
• Network: Wired + WiFi support
• Storage: Up to 32GB TF card
• Power: PoE / 12V DC

Ideal For

• Villas & independent houses
• Residential apartments
• Gated homes
• Small offices

Why Choose This Intercom Kit?

• Complete ready-to-install solution
• Remote access & mobile monitoring
• High-quality video & audio communication
• Secure multi-door control
• Reliable performance from Hikvision

Important Notes

• Installation not included (available at additional cost)
• Requires network setup for remote access
• WiFi performance depends on signal strength
